Feature tagging

Last updated:

Tag Features to uncover usage patterns in your application and to target guides. Features are managed in Product > Features, which you can find in the left-side navigation. For more details on the Features page in Pendo, see View and manage tagged Features.

Understand Feature tagging

Pendo creates Feature tags (also known as "tagging Features") based on rules. Rules define the HTML and CSS that Pendo interprets to tag your Features.

HTML and CSS are two of the basic building blocks of a website. HTML is the Markup language used to provide the content and structure for a website. CSS is the Markup language used to apply styling to HTML elements. CSS syntax is used for Feature tagging and guide positioning in Pendo.

HTML is made up of element tags, which provide the context needed for the web browser to display the site. Example HTML elements include <button>, <h1>, and <p>. HTML elements can also have attributes, commonly class and id.  The contents of these attributes, CSS selectors, identify and style specific elements of a Website. Pendo relies on these selectors to identify Feature clicks and to target guides.

Both HTML elements and attributes are used heavily by CSS to provide styling to specific parts of your application. In the example below, the HTML element is <div>, the HTML attribute is class, and the contents of the attribute (the CSS selector) is d-sm-flex align-items-center.

<div class="d-sm-flex align-items-center">

Tag Features

We use the Visual Design Studio to tag Features. The Visual Design Studio is Pendo’s interface for styling guides, as well as tagging Pages and Features.

To tag Features, you first enter tagging mode, which tells you what elements you’re selecting for tagging with a red, dotted box that follows your mouse in the application. You can then refine this selection with Feature Element Matching options in the Visual Design Studio. When you've selected a UI element to tag as a Feature, the dotted red line turns to a solid red line. Features bounded in a solid purple box are already tagged.

To tag Features in Pendo, navigate to Product > Features and then select Tag Features in the top-right corner.

  1. Enter the URL of the target page of your application.
  2. Choose a tagging mode: Tag side-by-side or Tag in an overlay. For more information, see Tagging with the Visual Design Studio.
  3. Select Launch Designer. This loads the Visual Design Studio.
  4. In the Features tab of the Visual Design Studio, select Tag Feature.
  5. Hover over and select the area of the page you want to tag. To tag a dropdown menu item, select ALT (for Windows) or Option (for Mac) while opening the dropdown menu to expand it.
  6. Choose Create New Feature at the top of the Visual Design Studio.


  7. Create a descriptive name that aligns with your company's naming convention for Pendo Features.
  8. Add a description, up to 280 characters, so that others know what element you're referring to in your app.
  9. Assign a Product Area to the Feature using the dropdown menu.
  10. Under Feature Element Matching, choose one of the following methods for creating a rule: Suggested Match, Rule Builder, or Custom CSS. For guidance, see Feature element matching in this article.
  11. Under Page Location, choose whether you want to track the Feature across the entire application (Sitewide) or on the specific Page (Only on this page).


  12. If you need to capture additional data when a visitor interacts with this Feature, open the Event Properties dropdown to add event properties. For more information, see Click event properties.
  13. Optionally, open the Settings section to turn Filter Dynamic Elements on Selection on or off. If your Feature involves elements with dynamic identifiers (for example, an ID that changes with each page load), this setting controls whether Pendo attempts to filter those dynamic elements out of the rule generation process. We recommend keeping this setting turned on to enhance the accuracy of rule generation.
  14. Select Save to add the Feature to your Features list.

Tip: Choose Sitewide for navigation buttons because it won't bring value to tag a navigation element on every possible Page variation.

Match Feature elements

When tagging a Feature in the Visual Design Studio, you have the following options for creating rules under Feature Element Matching:

  • Suggested Match. This is the automatic rule created by Pendo, which is based on the element you select on the page. You can use the up and down arrows to adjust your selection to include a larger or smaller area in the Feature rule. If this doesn’t ideally capture what you need it to, isn’t a unique match on the page, or isn’t static, you have the following additional options.
  • Rule Builder. This shows you the HTML elements and attributes available in the area that you’ve selected for tagging. You can use these items to create a specific Feature rule that works for your selected area of the application.
  • Custom CSS. If you’re comfortable with using Inspect in Google Chrome to investigate the HTML and CSS of your application, this option allows you to add a custom Feature rule based on the elements and attributes available in the area you selected.

For more information about CSS selectors, see Using CSS selectors in Feature tagging.

Tip: You can use Suggested Match as a starting point and then select either Rule Builder or Custom CSS to refine the rule further. You can also use the Rule Builder as a starting point for defining the CSS syntax that Pendo uses to tag your Features, and switch over to Custom CSS for more control over editing the rule.

Suggested match

When you select an element on a page, Pendo provides a rule and data to help you tag the appropriate element.

Use the arrows in the top-right to adjust your selection by navigating up and down the HTML Document Object Model (DOM) tree of the page.

Use the up arrow to choose a larger clickable area (the relative parent element) and the down arrow to choose a smaller clickable area (the relative child element). For example, you might select the text in a button and want to include the container that the text comes in. You can use the up arrow to navigate up the DOM tree to select the next largest item in the DOM for tagging.


Rule builder

Use the rule builder to create Feature rules based on your application's code without navigating away from the Visual Design Studio. The rule builder allows you to view, add, and remove rule options, with automatic rule formatting to ensure accuracy.

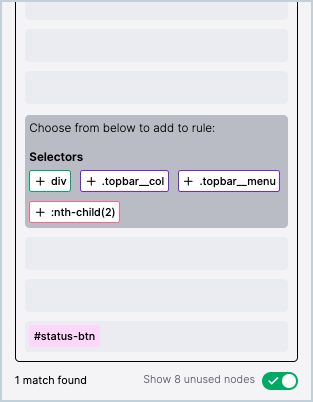

Use the toggle at the bottom of your selection to see unused nodes. A node is an element in the DOM tree, which is a hierarchical representation of a webpage's structure, style, and content. Each gray row represents a node (level) in the DOM tree based on the element you've selected.

Viewing unused nodes is valuable when the nodes that are currently visible in the rule builder aren't sufficient for creating an accurate Feature rule.

Choosing a node that's higher up the DOM tree selects a larger clickable area than choosing a node that's lower down the DOM tree.

Rule Builder – Show unused nodes.png    Show unused nodes.png

As you build your rule with the rule builder, the Visual Design Studio shows you the number of element matches and highlights the tagged area. The Visual Design Studio also shows you the rule as it would be if you created it with the Custom CSS option. You can find this under Selection while you’re building your rule.

Rule builder selection.png

The colors of items in the rule builder represent the following:

Color

HTML elements and attributes

Example

Purple

HTML classes, usually a good selector, though multiple elements on the page can have the same class.

class=“align-center”



Green

HTML element types

div, p, button, a

Yellow

HTML attributes

href, src, alt

Pink

HTML ID, usually the most unique selector on the page.

id=“myHeader”

Dark blue

HTML text "contains" statement. This is a Pendo-specific option that allows you to tag elements based on the text contained within them. Only available if the subscription setting Allow Text Capture in Web Applications is turned on.

contains('Set up')

To further refine your Feature rule in the rule builder, select the cog icon next to the rule.


The availability of the cog and the configuration options vary depending on the type of attribute.

  • For #id, options include DefaultStarts WithEnds With, and Contains.
  • For .class, options include Default and Contains.
  • For [attribute], options include DefaultAttribute ExistsStarts WithEnds With, and Contains.
  • If we can't identify the element type, or the element is an attribute with no value (for example, h2, div, input, and so on), the Default rule applies and the cog isn't available for further configuration.

Each configuration option is defined as follows:

  • Default. This is the CSS selector as it appears in the rule builder and isn't editable. It's the raw representation of the selector as initially captured, providing the most specific identification.
  • Attribute ExistsIdentifies element values that match the attribute without considering the attribute value (the text that follows the equals [=] sign). This option is useful when you want to target elements based on the presence of a specific attribute, regardless of its value.
  • Starts With. Identifies element values that start with the entered text. This option is useful when you want to capture elements that share a common prefix in their attribute value.
  • Ends With. Identifies element values that end with the entered text. This option is useful when you want to capture elements that share a common suffix in their attribute value.
  • Contains. Identifies element values that contain the entered text. This option is useful when you want to capture elements that share a common substring in their attribute value.

Selecting one of these configuration options changes the rule to an attribute with a modifier, allowing you to select the text and adjust the specificity of the rule as needed.

For example, you might have a modal in your app that opens after a user adds an item to their online shopping cart. If you want to tag the "Add to cart" button, but the best selector for that button is randomly generated as id="product-id-1245628-add-to-cart", you'd want to refine your rule. To accurately capture each click of this Feature, you'd configure your rule using the option that best fits your needs:

  • Starts With [id^=product-id].
  • Ends With [id$=add-to-cart].
  • Contains [id*=add-to].

Custom CSS

When you select the Custom CSS option, it pre-populates with the Suggested Match value. To create a rule using custom CSS for Feature element matching:

  1. In Google Chrome, right-click an element you're trying to tag and select Inspect.
  2. In the Elements tab, inspect the Document Object Model (DOM) tree, which contains the page data.
  3. Look for a specific, human-readable class for the element you're inspecting.
  4. In the Custom CSS text box, write . instead of class, and then copy the string exactly as it appears in the code, with periods instead of spaces, for example, class="sidebar-item js-sidebar-type-d would be written as .sidebar-item.js-sidebar-type-d in the text box.

For more information about the CSS for Feature tagging, see Using CSS selectors in Feature tagging.

Understand good Feature rules

This section summarizes best practices for creating Feature rules. For more information about CSS selectors, see Using CSS selectors in Feature tagging. For more detailed guidance on creating good rules for Feature tagging, see Advanced Feature Tagging

Guidance

Example

Tags should consist of a CSS ID (#char) that is specific and static.

#saveMessageButton

Tags should be included in a CSS class that uniquely identifies the object.

.emailSettingsSubmit

Tags should include text that contains a string that uniquely identifies the element.

A:contains("Log Out")

Tags shouldn’t be too specific or change session-to-session or user-to-user.

Don’t use:

A:contains(You have 16 new messages)

Use:

A:contains(message)

Tags shouldn’t include dynamically changing elements, often indicated by the inclusion of a seemingly random string of characters in the CSS selector.

Don’t use:

<div class=“sc-element-6gY8Tkk”

Use the ^ symbol to capture only the start:

<div class^=“sc-element”>

View tagged Features

There are a few ways to view and edit tagged Features in Pendo:

  • In the Visual Design Studio heatmap while tagging another Feature.
  • By choosing a Feature from the list in the Visual Design Studio when it launches.
  • In a Feature's details page within the Pendo UI, found by opening the Feature from the list in Product > Features. For more information on this option, see View and manage tagged Features.

In the heatmap in the Visual Design Studio

The heatmap in the Visual Design Studio generates a color-organized view of Features that have already been tagged while you’re tagging another Feature. For more information, see Feature heatmap.

Use the heatmap to get a view of Feature usage within the last 30 days. The “hotter” (closer to red) the Feature, the more it’s used. To view the heatmap:

  1. Go to Product > Features in Pendo.
  2. Select Tag Features in the top-right corner.
  3. Select Launch Designer. This opens the Visual Design Studio.
  4. Turn on the Heatmap at the bottom of the modal.


  5. If needed, expand the heatmap settings using the plus (+) icon to the right of the heatmap toggle. Here, you can update the heatmap to reflect usage of a specific Segment. By default, the segment is set to Everyone.

While the heatmap is turned on, you can also open an individual Feature from the list in the Visual Design Studio to view its mapping along a visual scale, from blue on the left to red on the right. This view provides additional metrics, including Total Clicks, Unique Visitor Clicks, and Accounts.

In the Visual Design Studio

  1. Go to Product > Features > Tag Features in Pendo.


  2. Enter the URL of the page of your application that the tagged UI element is on.
  3. Choose a tagging mode: Tag side-by-side or Tag in an overlay. For more information, see Tagging with the Visual Design Studio.
  4. Select Launch Designer to open the Visual Design Studio.
  5. In the Features tab, Tagged Features opens by default. Select the Feature you want to view or edit. The modal displays the name of the event, associated app, Product Area, Page location, and the names of the users who created and last updated the tag.
  6. To view recent metrics for this Feature, select Metrics at the bottom of the modal. Select a Segment to view metrics for a specific group of users.
  7. To edit the Feature, select Edit Feature in the bottom-right corner.


  8. Optionally:
    • Edit the name of the Feature.
    • Add a description for the Feature, or update the description if one already exists. The description must be 280 characters or less.
    • Change the Product Area that the Feature is assigned to.
    • Re-target the UI element associated with the Feature.
    • Change the Page Location.
    • Add event properties.
    • Turn Filter Dynamic Elements on Selection on or off.
  9. If you made changes, select Save Changes in the bottom-right corner.
