Add AWS Redshift as a data source in Pendo Predict

This article explains how to connect your AWS Redshift instance to Pendo Predict so you can use Redshift as a source when building predictive models.

There are two primary connectivity methods:

1. Direct URL-Based Endpoint (with optional IP Whitelisting)
2. Redshift-Managed VPC Endpoint

Choose the method that meets your security and networking requirements. This
document covers setup instructions, authentication, and troubleshooting tips.

Prerequisites

Before starting, verify you have the following:

• Amazon Redshift Cluster: Make sure it is running and that you can connect
  to it via standard SQL clients or other tools.
• Pendo Predict Account: You’ll need an active Pendo Predict account with
  permissions to add new data integrations.
• Read Access to Assets: Ensure that the Redshift user or role you plan to use
  for Pendo Predict has read access (and any additional privileges necessary) to
  all required schemas, tables, or other assets.
• Network/Firewall Configuration:
  • Direct URL: Confirm that Redshift is accessible from the public
    internet, or whitelist Pendo Predict's static public IP.
  • Managed VPC: Check that your security groups allow traffic via the
    Redshift-managed VPC endpoint

Step 1: Connection Methods

Direct URL-Based Endpoint

Use this option if your Redshift cluster is publicly accessible or if you’ve whitelisted Pendo Predict’s public IP address:

1. Endpoint & Port: Supply your Redshift cluster’s endpoint (e.g., examplecluster.abc123xyz.us-west-2.redshift.amazonaws.com) and the port (e.g.: 5439).
2. Security Group / Firewall:
   • If your Redshift instance is publicly accessible, ensure there are no additional rules blocking connections.
   • If you limit inbound connections, whitelist Pendo Predict's static IP so it can reach your cluster.

Redshift-Managed VPC Endpoint

Use AWS PrivateLink for more secure, private connectivity:

1. Obtain Pendo Predict AWS Account ID and VPC ID: Pendo Predict will provide the AWS Account ID and the VPC ID where our platform hosts its resources.
2. Create the Redshift-Managed VPC Endpoint:

• From the Amazon Redshift console, configure a VPC endpoint (AWS
  PrivateLink) permitting traffic from Pendo Predict’s AWS Account ID and
  VPC.
  • Update your Redshift security group(s) to allow connections from
    that endpoint.
  • Follow AWS specific considerations, to make sure the cluster has the
    ability to use PrivateLink.

  •

3. Share Your AWS Account ID: Provide your AWS Account ID to Pendo Predict so we can identify and
   map the correct connection to you.
4. Endpoint Creation by Pendo Predict:
   • After you confirm your setup is complete, Pendo Predict will create a
     corresponding endpoint in our VPC.
   • We’ll provide a final private endpoint URL for connecting to your
     Redshift cluster.

Step 2: AWS Redshift Permissions Setup

1. User Permissions (relevant for both connection methods): In redshift, provide the user with read privileges for the relevant sources (schemas and tables).
2. IAM Role Authentication:

   • Set the following Role Policy

     JavaScript
     {
       "Version": "2012-10-17",
       "Statement": [
         {
           "Sid": "RedshiftGetClusterCredentials",
           "Effect": "Allow",
           "Action": [
           "redshift:GetClusterCredentials"
           ],
           "Resource": [
           "arn:aws:redshift:<REGION>:<ACCOUNT_ID>:cluster:<CLUSTER_NAME>",
           "arn:aws:redshift:<REGION>:<ACCOUNT_ID>:dbname:<CLUSTER_NAME>/<DB_NAME>",
           "arn:aws:redshift:<REGION>:<ACCOUNT_ID>:dbuser:<CLUSTER_NAME>/<DB_USER>"
           ]
         }
       ]
     }

   • Set the following Trust Relationship

     JavaScript
     {
       "Version": "2012-10-17",
       "Statement": [
         {
         "Effect": "Allow",
         "Action": "sts:AssumeRole",
         "Principal": {
         "AWS": "<ROLE ARN Provided by Forwrd>"
         },
         // If external ID is used:
         "Condition": {
         "StringEquals": {
         "sts:ExternalId": "<EXTERNAL_ID>"
         }
     }

Step 3: Configuring the Integration in Pendo Predict

After you’ve set up the chosen connection method, configure the integration
within your Pendo Predict platform:

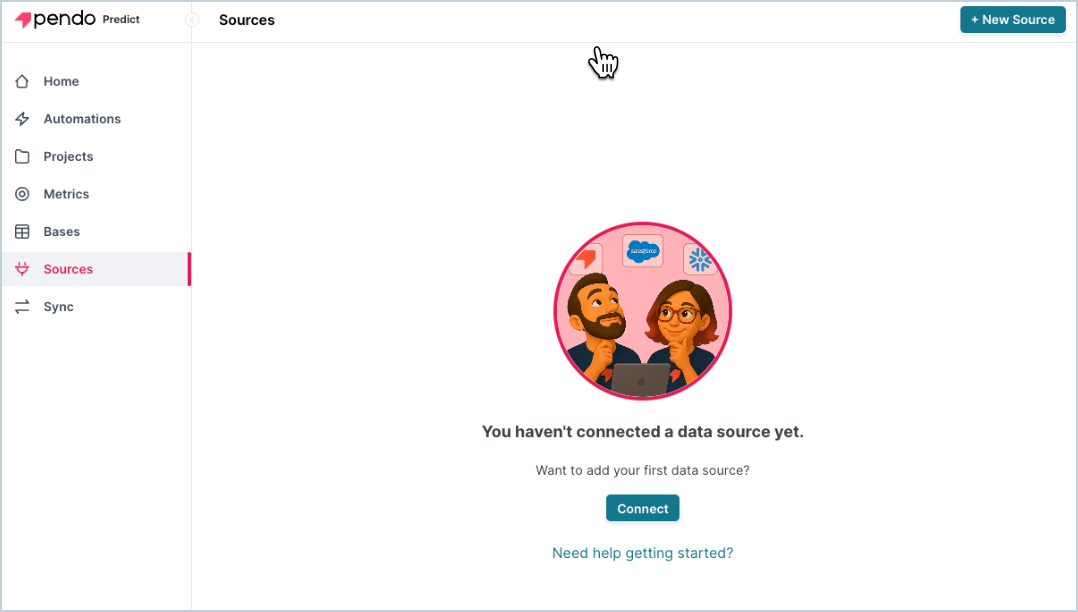

1. In Pendo Predict, go to the Sources tab.

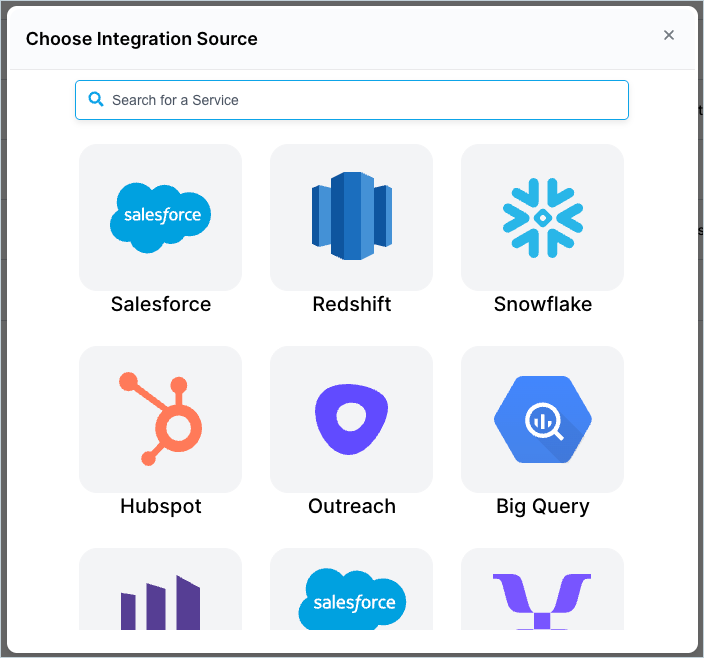

2. Select New Source, then choose Redshift.

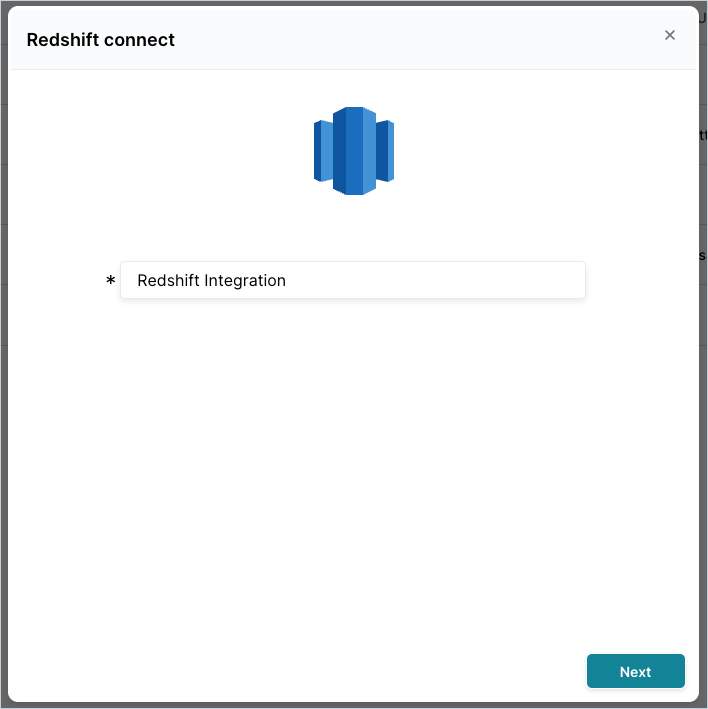

3. Enter a name that other users will recognize easily



4. Select the method of authentication:

   • Standard Username/Password: Use a Redshift user credential with
     at least read access to the needed data assets.
   • IAM Role: IAM role–based authentication, allowing temporary
     credential-free connections.

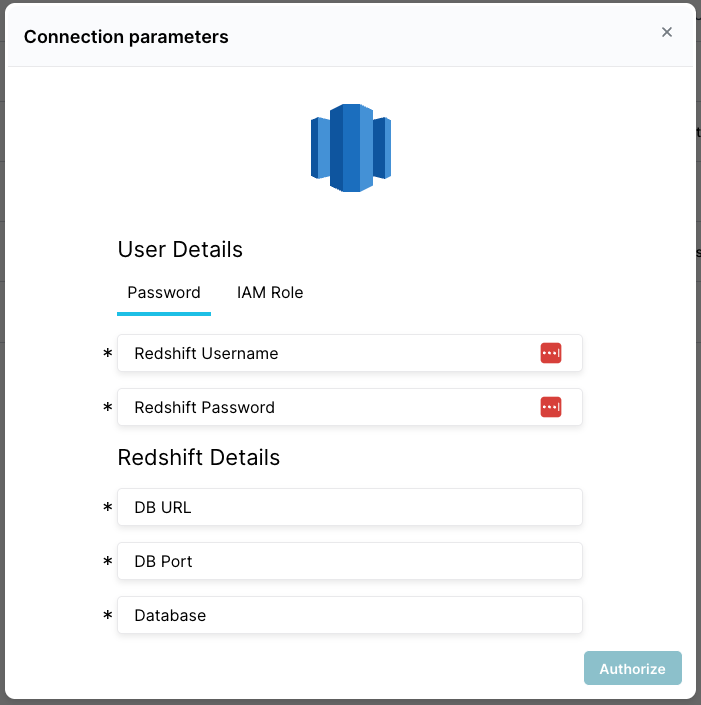

5. Provide the:
   • Relevant credentials - the dedicated db user and password or Role
     ARN accordingly.
   • DB URL/endpoint
   • DB Port
   • DB Database
6. Click on Authorize to set the connection.

Troubleshooting & FAQ

In case the authorization fails, verify the following:

• Verify you have the correct endpoint/port and credentials (try to connect it
  externally)
• Ensure your firewall/security groups permit inbound traffic from Pendo Predict's
  public static IP address (if whitelisted) or from the VPC endpoint if using
  PrivateLink.
• Ensure your user has the correct privileges.
